A practical guide to HDMI ARC and eARC for better TV audio without the hassle

Modern TVs are thinner and sharper than ever, but their built-in audio often feels flat. The easiest upgrade is to add a bar, amplifier or home cinema receiver. To get the most from that upgrade, it helps to understand one key feature: HDMI ARC and eARC.

This guide explains what ARC and eARC do, which cables and ports you need, common problems and simple fixes. The goal is clear: better audio from your TV with the least amount of fuss and extra remotes.

What HDMI ARC and eARC actually do

ARC stands for Audio Return Channel. Instead of sending video from a box or console to the TV and then using a separate cable for audio, ARC lets the TV send audio back down the same HDMI cable to your external audio gear.

eARC is the enhanced version. It offers higher bandwidth, which means it can pass higher quality formats such as lossless Dolby TrueHD and some types of Dolby Atmos that ARC often compresses or downsamples.

How to identify ARC and eARC ports

On most TVs, only one HDMI input supports ARC or eARC. It is usually labeled “HDMI ARC” or “HDMI eARC/ARC” and is often HDMI 2. On audio gear, look for an HDMI port marked “TV”, “ARC” or “eARC”. That is the one that must connect directly to the TV.

If you do not see any ARC label on a TV that is a few years old or more, check the manual or the manufacturer’s support page. Some brands enable ARC in software but only mark the port with a small icon on the rear panel.

Cables: what you need and what you do not

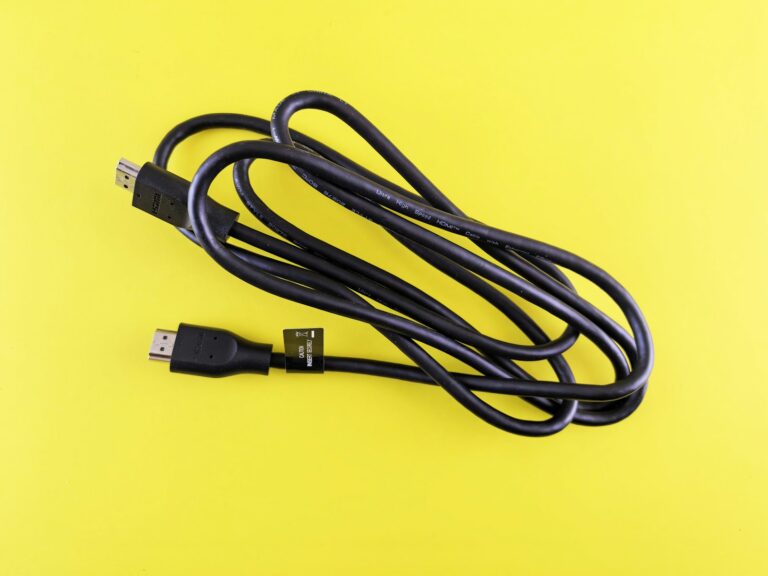

For standard ARC, almost any reasonably recent High Speed HDMI cable will work. If your cable came with a 4K streaming device or modern console, it is probably fine for ARC use between TV and audio gear.

For eARC, the recommendation is an Ultra High Speed HDMI cable, especially if you also pass 4K 120 Hz video or variable refresh rate. eARC often functions with older cables, but a certified cable reduces dropouts and handshake issues.

Basic ARC hookup step by step

To route TV audio to a bar or receiver with ARC, start by connecting the HDMI cable from the TV’s HDMI ARC port to the audio device’s HDMI ARC or TV port. This is the main connection that handles all audio coming from the TV.

Next, plug your sources (set-top box, console, streaming dongle) into either the TV or the audio device, depending on your setup. If your bar has limited inputs, it is usually easier to plug everything into the TV and let ARC send audio out.

Basic eARC hookup and when it matters

eARC works much like ARC, but both TV and audio device must support it. You still connect the TV’s HDMI eARC port to the receiving device’s eARC or TV port with a good Ultra High Speed cable.

eARC really matters if you watch 4K discs, high bitrate streams or Atmos tracks from internal TV apps and you care about the extra clarity and spatial detail. For everyday TV and most streaming content, standard ARC is usually adequate.

Key settings on your TV

Once things are plugged in, you must tweak a few menus. On most TVs, set the audio output to “HDMI ARC” or “Receiver”. Then enable CEC, often branded as Anynet+ (Samsung), Bravia Sync (Sony), Simplink (LG) or similar.

Finally, change the digital audio format. For bars, “Dolby Digital” or “Auto” is usually best. For receivers that support more formats, “Passthrough” or “Bitstream” is ideal. If you get no audio, try “PCM” as a troubleshooting step.

Key settings on your bar or receiver

On the audio side, ensure the input is set to the HDMI ARC or TV port. Some devices also have an audio return setting that must be enabled in their on-screen menu or front-panel options.

If there is a choice between CEC and manual control, start by turning CEC on so the TV can control power and volume. Once it works, you can adjust or limit CEC behaviors if you find them intrusive.

Using CEC so one remote controls everything

CEC (Consumer Electronics Control) lets devices share commands over HDMI. When configured correctly, turning on the TV can automatically power the bar or receiver and adjust its volume with the TV remote.

To make this work, enable CEC on both TV and audio gear, then power everything off and back on. If volume still does not sync, look for an option called “TV control”, “HDMI control” or “Audio system” on the receiver or bar.

Common ARC and eARC problems and easy fixes

If you get no audio, first check that the HDMI cable is in the correct ports on both devices. Then confirm that ARC or eARC is enabled on the TV and that the audio device input is set to the HDMI ARC or TV port.

For audio that cuts out or lags the picture, try a shorter or higher quality HDMI cable between TV and audio gear. You can also disable “lip sync” or “audio delay” features on either side, or adjust them with a small manual delay until dialog matches mouth movement.

When optical audio is still a good idea

If your TV or bar does not support ARC, or if HDMI handshake problems keep returning, an optical (Toslink) cable from TV to audio gear can be a reliable fallback. It supports up to Dolby Digital 5.1 in many setups.

The main drawback is that optical cannot carry the latest high bitrate formats or some forms of Atmos, and it does not support CEC. That means you might lose one-remote control and some higher end audio options.

Future proofing your next TV or audio upgrade

When buying a new TV or bar, look specifically for eARC if you plan to keep the device for several years. It gives you more headroom as streaming services increase bitrates and as more content uses object based formats.

Also consider how many HDMI inputs you really use. If your bar has limited inputs, an eARC enabled TV with several HDMI ports can act as the main hub, so you can keep cable routing and daily use as simple as possible.
